Furthermore, its resistance to natural disasters such as hurricanes and earthquakes, its ability to withstand fire, and its durability make this ICF system an ideal choice for both residential and commercial projects, guaranteeing a robust, safe, and sustainable construction.
The ICF Solid Wall (PS) stands out for its high level of thermal and acoustic insulation, which translates into greater energy efficiency and comfort inside the building, incomparable to traditional systems.
-
Lineal #3: 0.67
-
Esquina #4: 0.89
-
6 niveles
Niveles máximo recomendados
sin estructura adicional:
Varilla kg/pza:
-
0.10
-
0.13 y 0.18
-
2 hiladas al desplante (1.5 hiladas)
-
Cada 4 a 5 hiladas hasta altura deseada
Altura vertido recomendada:
Concreto m3/m2:
-
2 pzs
-
f´c 150 kg/cm2.
-
Agregado: 3/8 a menor.
-
Revenimiento: 15 a 18 cm
Concreto:
Rendimiento block lineal/m2:
-
R-22+
-
D-32 kg/m3
Densidad del aislante térmico:
Aislante térmico Valor R:
-
Largo: 120cm X Alto: 40cm
-
Ancho 23cm, 27cm y 32cm
-
Núcleo: 10cm, 14cm y 19cm
-
Espesor placas aislantes laterales: 6.5cm
-
Largo: 60cm + 38cm X Alto: 30cm
-
Ancho 23cm, 27cm y 32cm
-
Núcleo: 10cm, 14cm y 19cm
-
Espesor placas aislantes laterales: 6.5cm
Medidas de block esquina:
Medidas de block lineal:
ICF - Solid Wall tech info

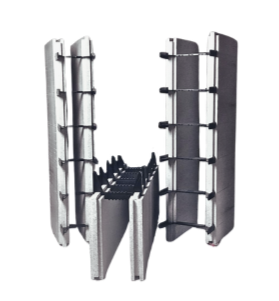

ICF-Solid Wall (monolithic)
Insulating Block ICF-15
The system consists of two high-density expanded polystyrene (EPS) panels that form a permanent formwork for reinforced concrete inside. Once the concrete has cured, it forms a continuous monolithic core, providing an exceptionally strong structure.
