SOLID WALL ICF

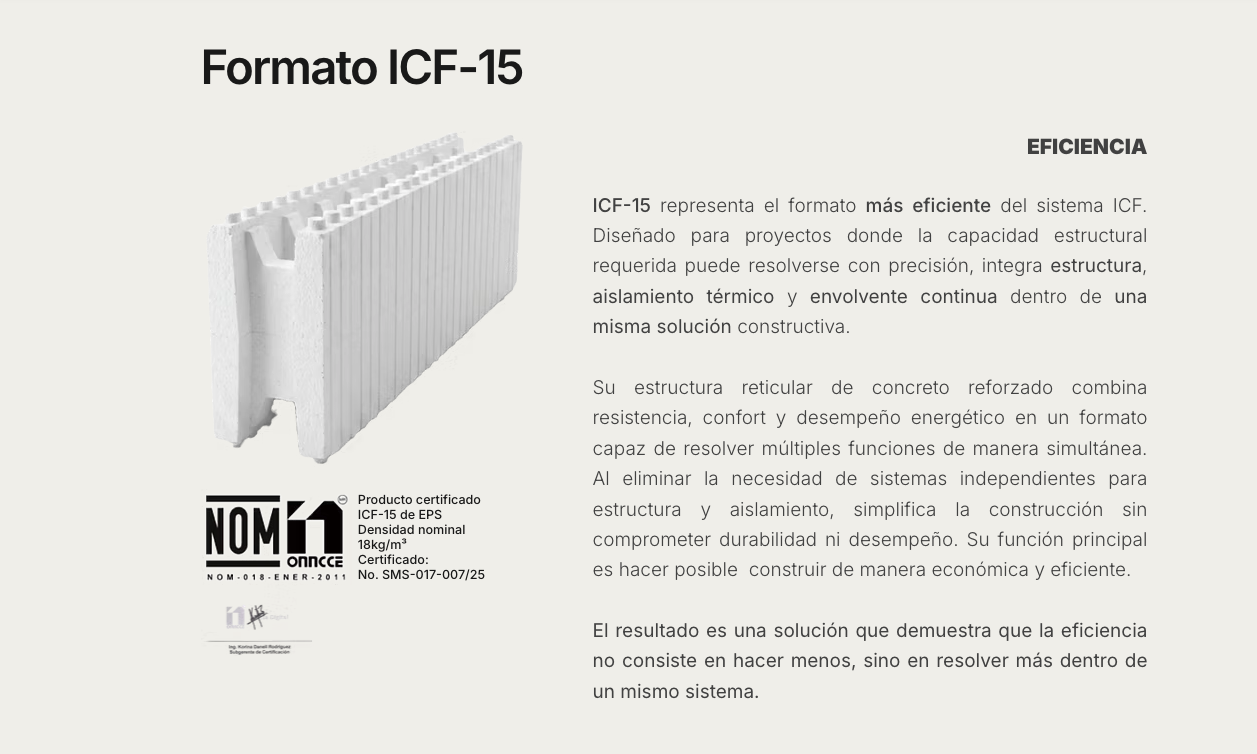

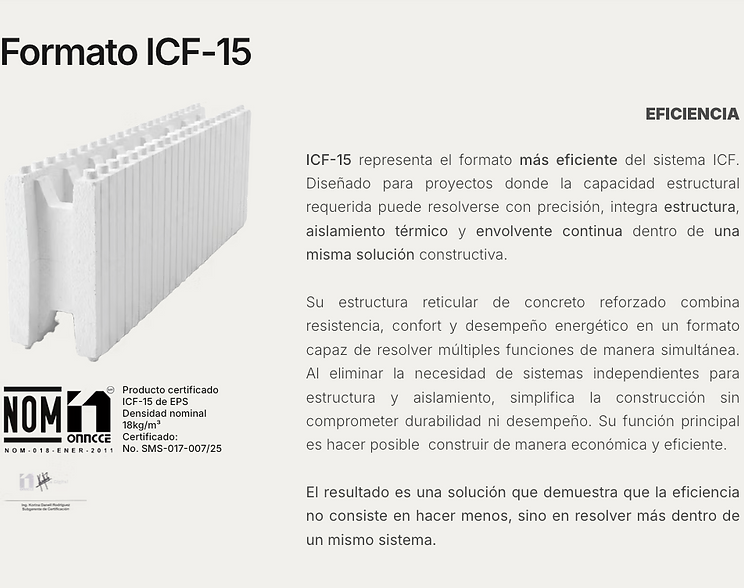

ICF-15 Format EFFICIENCY ICF-15 represents the most efficient format of the ICF system. Designed for projects where the required structural capacity can be resolved with precision, it integrates structure, thermal insulation, and continuous envelope within a single construction solution. Its reinforced concrete grid structure combines strength, comfort, and energy performance in a format capable of resolving multiple functions simultaneously. By eliminating the need for independent systems for structure and insulation, it simplifies construction without compromising durability or performance. Its primary function is to make it possible to build economically and efficiently. The result is a solution that proves efficiency isn't about doing less — it's about resolving more within a single system.

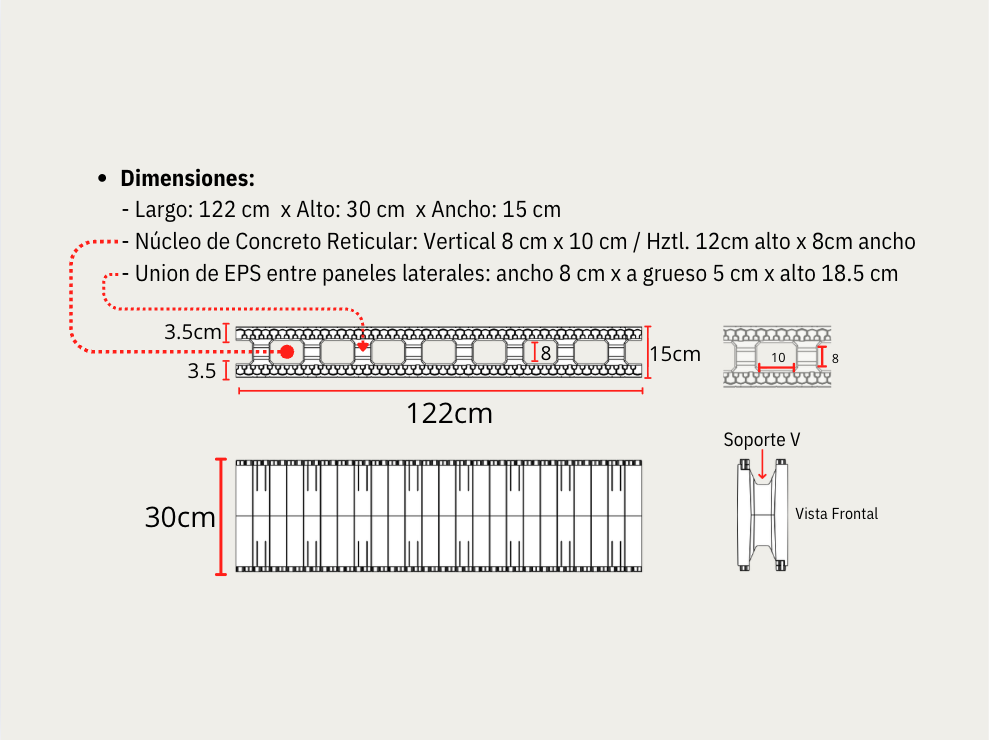

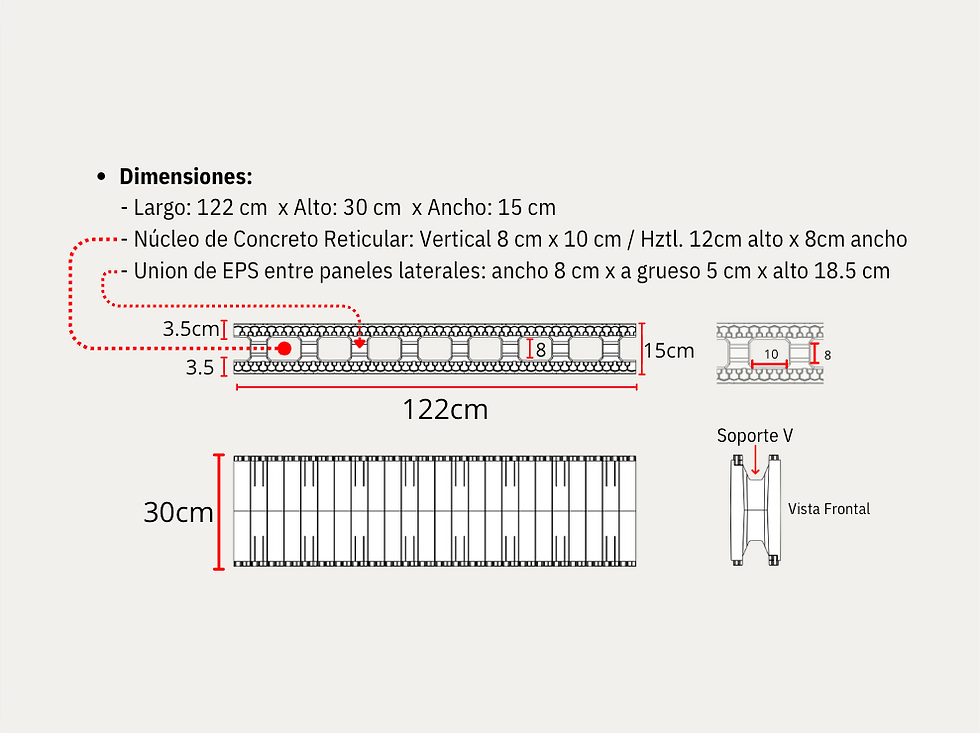

Straight Form measurements and views from different sides
Straight Form
​

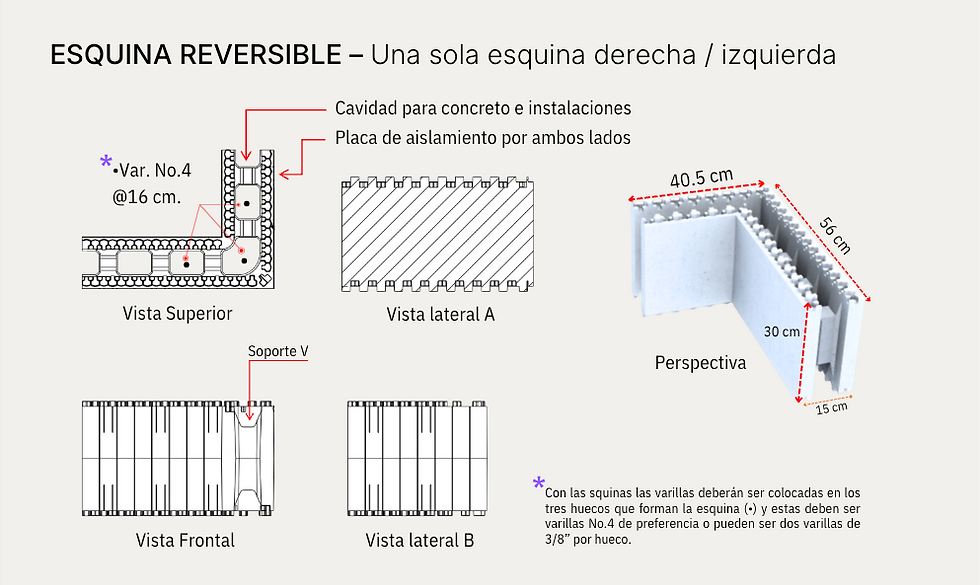

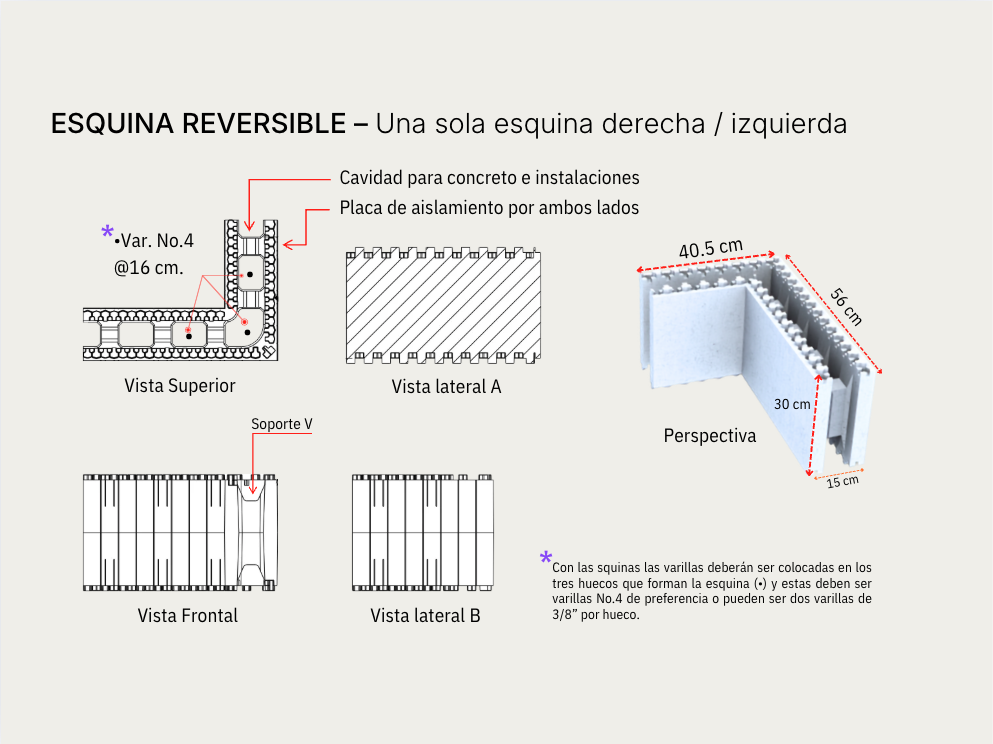

Corner form measurements and views

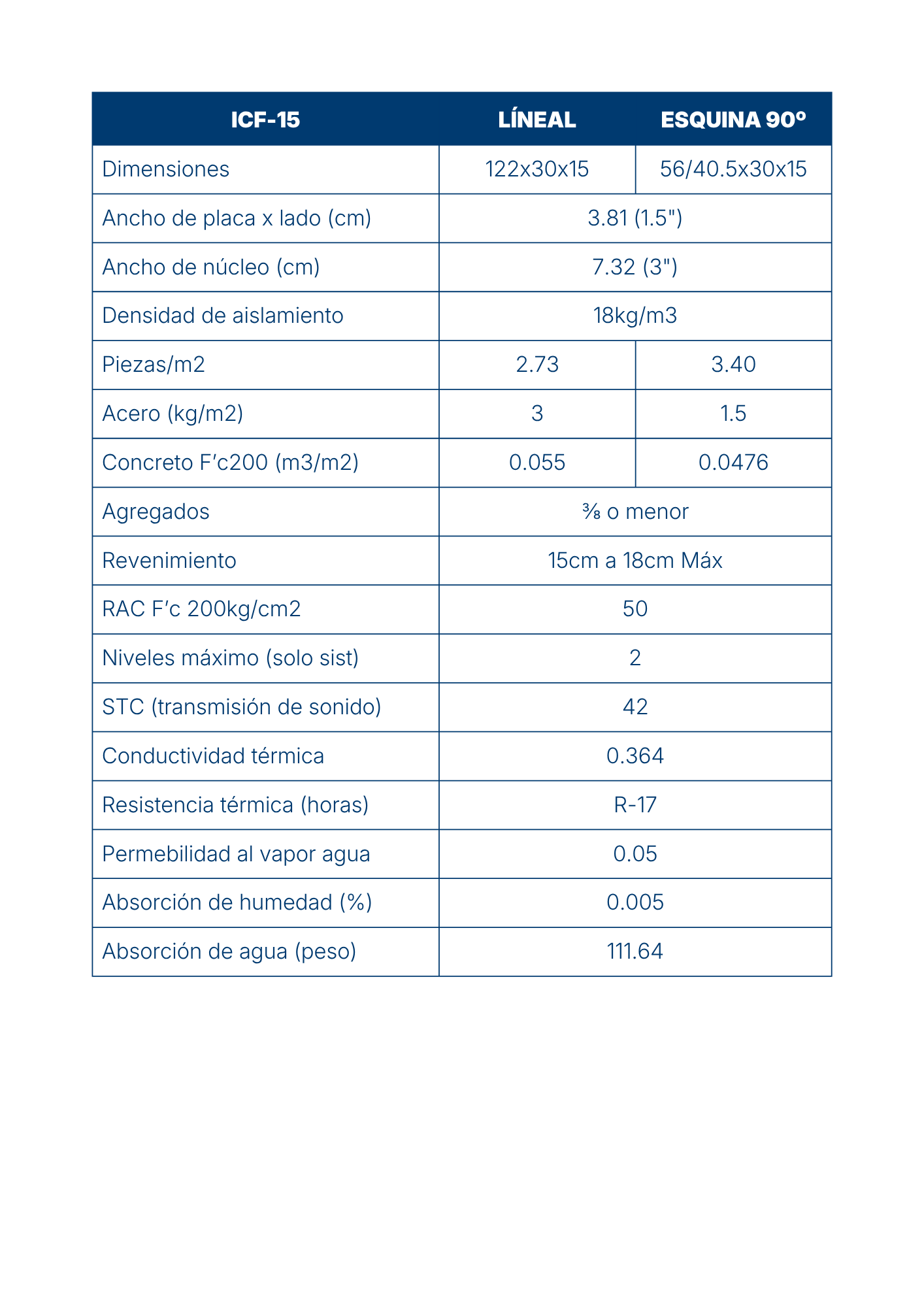

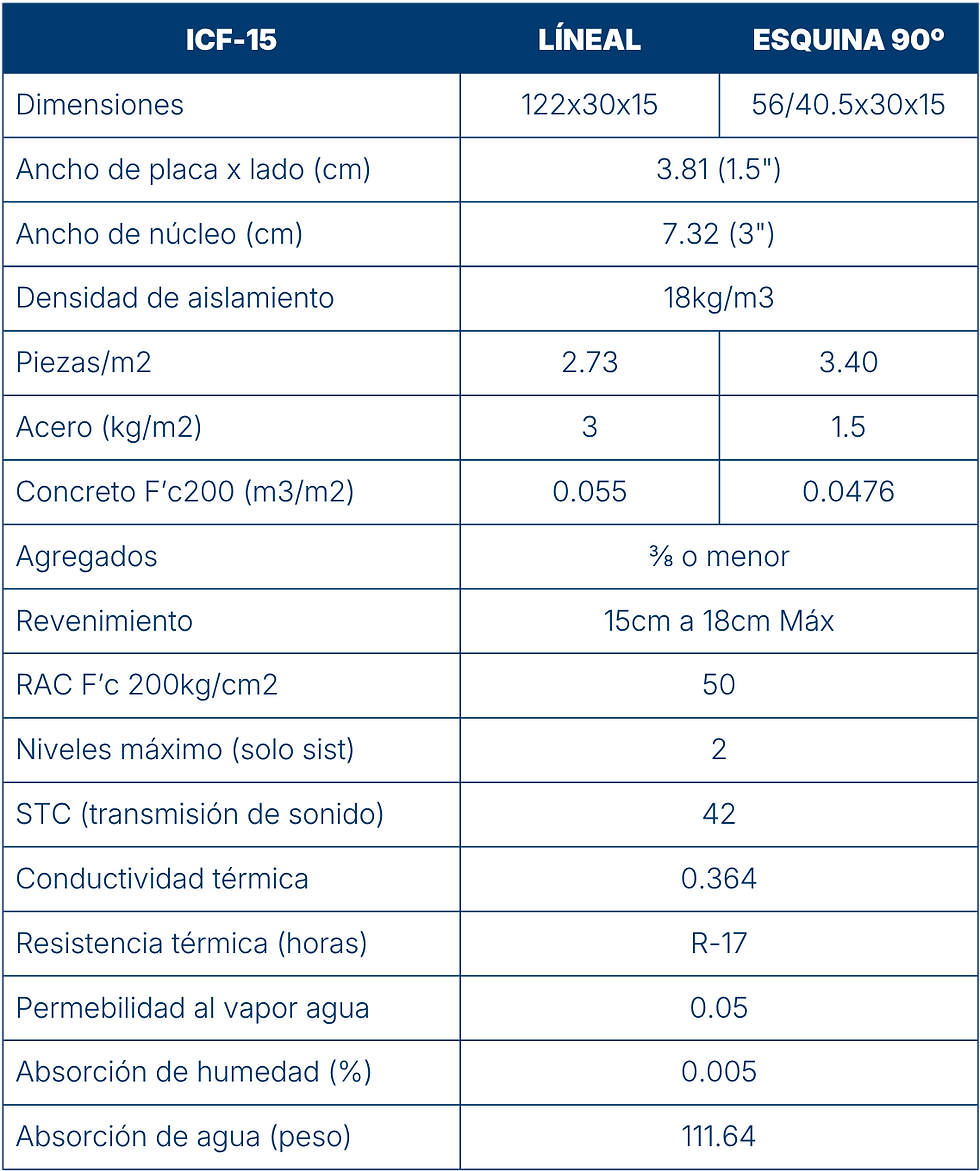

Specifications

ICF-15 — Lineal / 90° Corner Dimensions: 122x30x15 / 56/40.5x30x15 Panel width per side (cm): 3.81 (1.5") Core width (cm): 7.32 (3") Insulation density: 18kg/m3 Units/m2: 2.73 / 3.40 Steel (kg/m2): 3 / 1.5 Concrete F'c200 (m3/m2): 0.055 / 0.0476 Aggregate size: ⅜ or smaller Slump: 15cm to 18cm Max RAC F'c 200kg/cm2: 50 Maximum stories (system only): 2 STC (sound transmission): 42 Thermal conductivity: 0.364 Thermal resistance: R-17 Water vapor permeability: 0.05 Moisture absorption (%): 0.005 Water absorption (weight): 111.64
