ICF-PS Format
INTEGRATION
Solid Wall represents the most complete expression of the ICF system. Designed for projects where the envelope's integrated performance is the top priority, it integrates resilient structure, thermal insulation, acoustic insulation, and continuous envelope within a single construction solution.
Its monolithic reinforced concrete core combines structural capacity, thermal mass, and durability in a format capable of resolving multiple functions simultaneously. By eliminating the need for independent systems for structure, insulation, and thermal bridge control, it simplifies construction without compromising performance or comfort.
The result is a solution that proves integration isn't about bringing more components together — it's about allowing structure, performance, and comfort to work as a single expression of the system.

Flat Wall ICF Straight Form
Length: 122cm x Height: 40cm x Width: 23cm

Monolithic Reinforced Concrete Core: 10cm (4")

Polypropylene Web Connector System: 29cm x 4cm

Web Connector

Right Corner Block:
Length: 92.67/30.70cm x Height: 40cm x Width: 23cm

Monolithic Reinforced Concrete Core: 10cm (4")

Polypropylene Web Connector System: 29cm x 4cm

Left Corner Block:
Length: 92.67/30.70cm x Height: 40cm x Width: 23cm

Monolithic Reinforced Concrete Core: 10cm (4")

Polypropylene Web Connector System: 29cm x 4cm

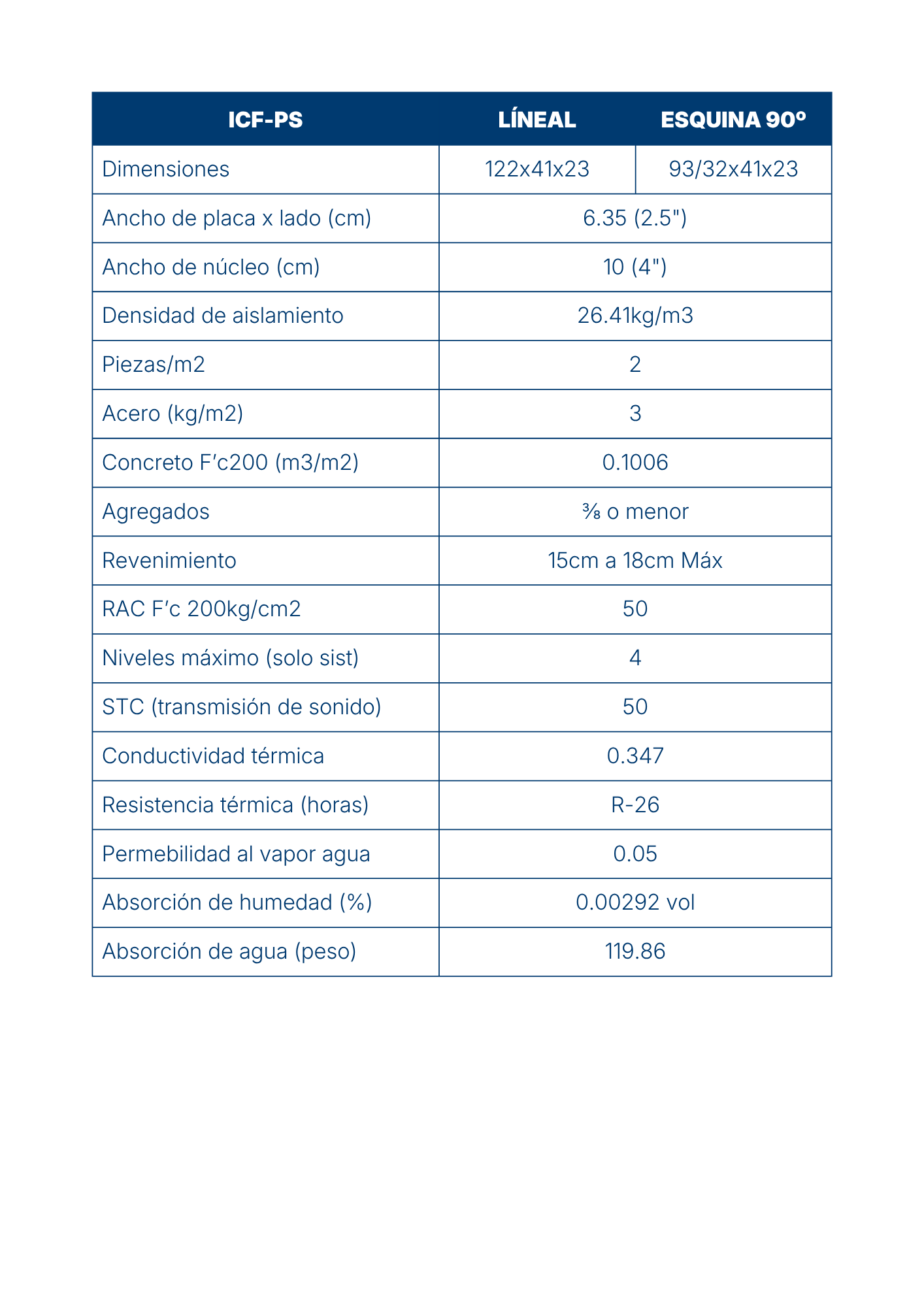

Specifications

ICF-PS — Lineal / 90° Corner
Dimensions: 122x41x23 / 93/32x41x23

Panel width per side (cm): 6.35 (2.5")

Core width (cm): 10 (4")

Insulation density: 26.41kg/m3

Units/m2: 2

Steel (kg/m2): 3

Concrete F'c200 (m3/m2): 0.1006

Aggregate size: ⅜ or smaller

Slump: 15cm to 18cm Max

RAC F'c 200kg/cm2: 50

Maximum stories (system only): 4

STC (sound transmission): 50

Thermal conductivity: 0.347

Thermal resistance: R-26

Water vapor permeability: 0.05

Moisture absorption (%): 0.00292 vol

Water absorption (weight): 119.86
