ICF-PSE Format DYNAMICS Solid Wall Assemblable represents the most adaptable format of the ICF system. Designed for projects where structural, thermal, and functional needs evolve throughout a single building, it integrates structure, insulation, and continuous envelope within a solution capable of adjusting its capacity without abandoning the system's logic. Its modular design allows different concrete core thicknesses to be configured using the same construction platform, adapting structural performance, thermal mass, and insulation to the specific requirements of each project. The result is a format capable of responding to multiple scenarios while maintaining construction continuity, logistical efficiency, and performance consistency. The result is a solution that proves adaptability isn't about switching systems when needs evolve — it's about having one capable of evolving with them.

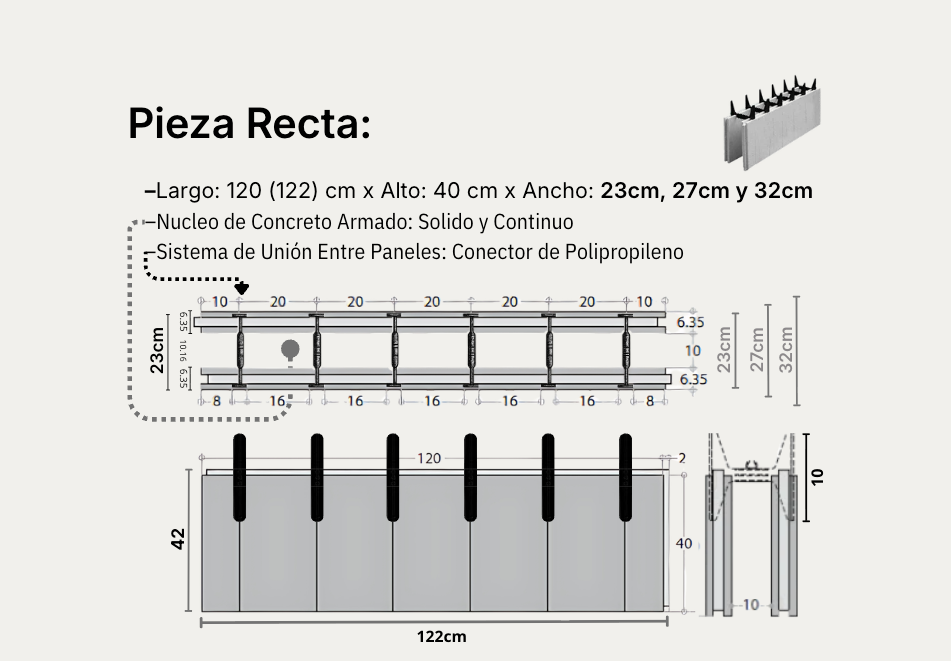

Straight Form: Length: 120 (122) cm x Height: 40 cm x Width: 23cm, 27cm, and 32cm Reinforced Concrete Core: Solid and Continuous Panel-to-Panel Joint System: Polypropylene Connector
Different Webs for Core sizes, 4", 5.5" and 7.5"
Right/Left Corner Panel: Exterior Panel: Length: 60cm + 38 (40)cm x Height: 40cm x Width: 23, 27, and 32cm Concrete Core: 10cm, 14cm, and 19cm Interior Corner Panels Are Only Available for 10cm Connectors (23cm Block)
Mechanical Properties — 10 CM CONNECTOR Ideal for residential and horizontal multi-family construction, due to the significant advantages this assemblable ICF format provides. System properties: Maximum height: 7 m (27' 11.5") Concrete volume: 0.10 m³/m² System self-weight: 227.33 kg/m² ICF-PSE panel piece weight: 0.91 kg/pc Panel weight m2 (4.16 pcs): 3.15 kg/m² Internal cavity thickness: 10.16cm (4") Total wall thickness: 22.86cm (9") System R-Value: 24 Ft².Fh/BTU STC acoustic insulation: 48 dB Labor output: Complete system: 100 m²/day Product placement: 120 m²/day Optimal structural applications: Load-bearing wall Shear wall Perimeter wall or boundary wall Partition wall with structural requirement

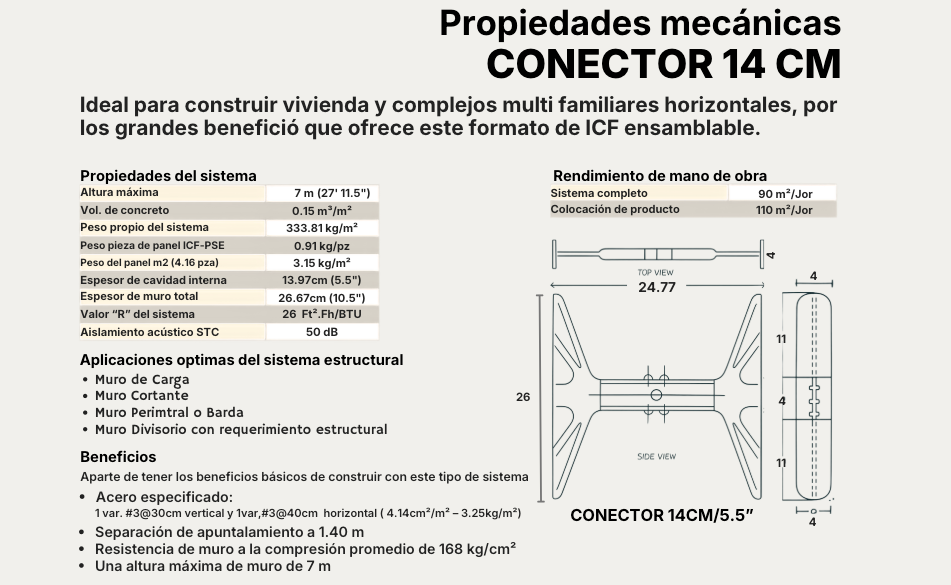

Mechanical Properties — 14 CM CONNECTOR Ideal for residential and horizontal multi-family construction, due to the significant advantages this assemblable ICF format provides. System properties: Maximum height: 7 m (27' 11.5") Concrete volume: 0.15 m³/m² System self-weight: 333.81 kg/m² ICF-PSE panel piece weight: 0.91 kg/pc Panel weight m2 (4.16 pcs): 3.15 kg/m² Internal cavity thickness: 13.97cm (5.5") Total wall thickness: 26.67cm (10.5") System R-Value: 26 Ft².Fh/BTU STC acoustic insulation: 50 dB Labor output: Complete system: 90 m²/day Product placement: 110 m²/day Optimal structural applications: Load-bearing wall Shear wall Perimeter wall or boundary wall Partition wall with structural requirement

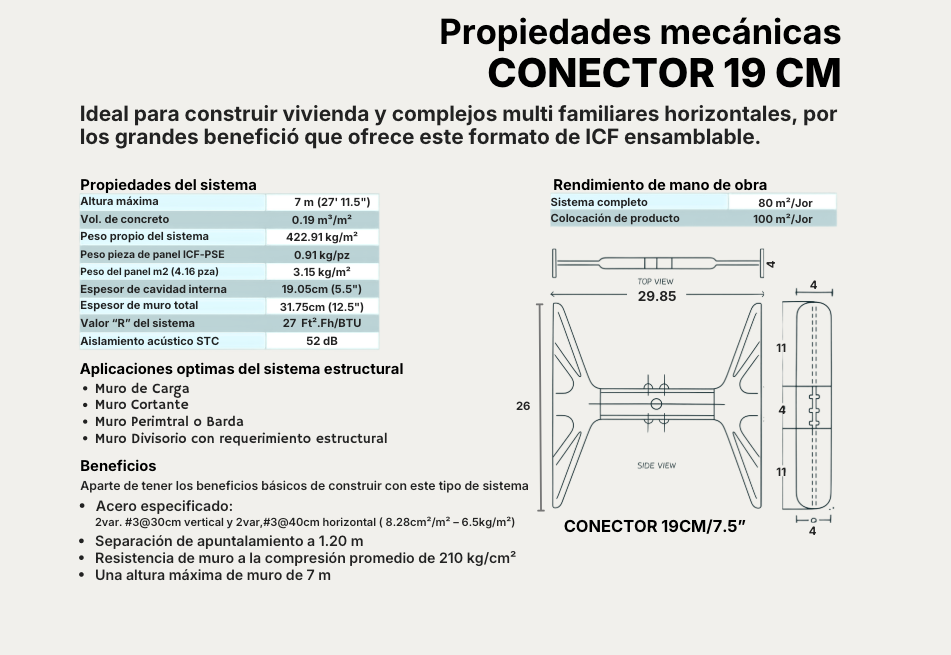

Mechanical Properties — 19 CM CONNECTOR Ideal for residential and horizontal multi-family construction, due to the significant advantages this assemblable ICF format provides. System properties: Maximum height: 7 m (27' 11.5") Concrete volume: 0.19 m³/m² System self-weight: 422.91 kg/m² ICF-PSE panel piece weight: 0.91 kg/pc Panel weight m2 (4.16 pcs): 3.15 kg/m² Internal cavity thickness: 19.05cm (7.5") Total wall thickness: 31.75cm (12.5") System R-Value: 27 Ft².Fh/BTU STC acoustic insulation: 52 dB Labor output: Complete system: 80 m²/day Product placement: 100 m²/day Optimal structural applications: Load-bearing wall Shear wall Perimeter wall or boundary wall Partition wall with structural requirement

Specifications

ICF-PSE — Lineal / 90° Corner Dimensions: 122x42x23 / 62/40x42x23 Panel width per side (cm): 6.35 (2.5") Core width (cm): 10 (4") | 14 (5.5") | 17 (7.5") Insulation density: 33.6kg/m3 Units/m2: 2 Steel (kg/m2): 3 Concrete F'c200 (m3/m2): 0.1006 + Aggregate size: ⅜ or smaller Slump: 15cm to 18cm Max RAC F'c 200kg/cm2: 50 Maximum stories (system only): 4 | 5 | 6 STC (sound transmission): 50 | 52 + Thermal conductivity: 0.323 Thermal resistance: R-26 + Water vapor permeability: 0.034 Moisture absorption (%): 0.00265 vol Water absorption (weight): 119.86

Loads and Steel

Loads and Steel Thickness 10: 150 kg/cm² — Axial load resistance: 71.40 ton/m — Shear load resistance: 4.38 ton/m — Steel area: 2.40 cm² — Vertical bars: #3 @30 — Horizontal bars: #3 @30 200 kg/cm² — Axial load resistance: 95.20 ton/m — Shear load resistance: 5.06 ton/m 250 kg/cm² — Axial load resistance: 119.00 ton/m — Shear load resistance: 5.66 ton/m Thickness 15: 200 kg/cm² — Axial load resistance: 142.80 ton/m — Shear load resistance: 7.59 ton/m — Steel area: 3.60 cm² — Vertical bars: #3 @20 — Horizontal bars: #3 @20 250 kg/cm² — Axial load resistance: 178.50 ton/m — Shear load resistance: 8.49 ton/m

Fire Performance | 4-Hour Fire Resistance

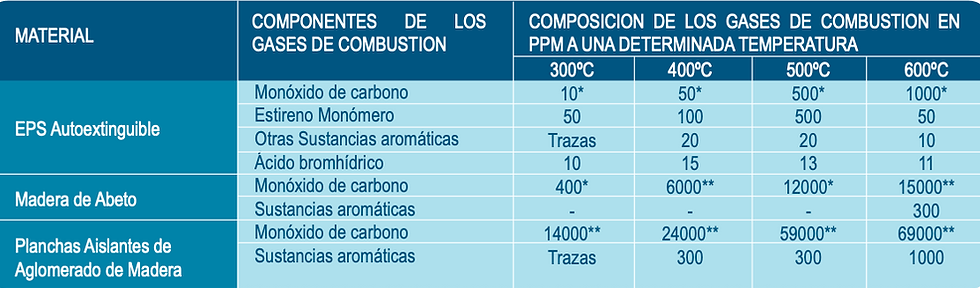

Fire Performance | 4-Hour Fire Resistance Self-Extinguishing EPS: Carbon monoxide: 10* / 50* / 500* / 1000* Styrene monomer: 50 / 100 / 500 / 50 Other aromatic substances: Traces / 20 / 20 / 10 Hydrobromic acid: 10 / 15 / 13 / 11 Spruce Wood: Carbon monoxide: 400* / 6000** / 12000* / 15000** Aromatic substances: - / - / - / 300 Wood Particleboard Insulation Panels: Carbon monoxide: 14000** / 24000** / 59000** / 69000** Aromatic substances: Traces / 300 / 300 / 1000
